HAVACO RBV roof fan
Roof fan, radial with vertical air ejection. The vertical air ejection of the RBV HAVACO roof fan, makes the fan particularly suitable for installations that extract contaminated air that cannot be ejected horizontally, in facilities such as factories, hospitals, restaurants, as well as in offices and residential buildings.
The most important product features
Housing made of galvanized sheet metal.
Rotor with backward inclined blades, made of galvanized sheet metal, dynamically balanced
A special system of drainage holes prevents rainwater from entering the system.
Motor with rotating stator, powered by single-phase 230V, 50Hz or three-phase 400V, 50Hz. Adapted for voltage regulation or frequency converter. Degree of protection IP 44, insulation class B or F.
- Variants & availability
- Description

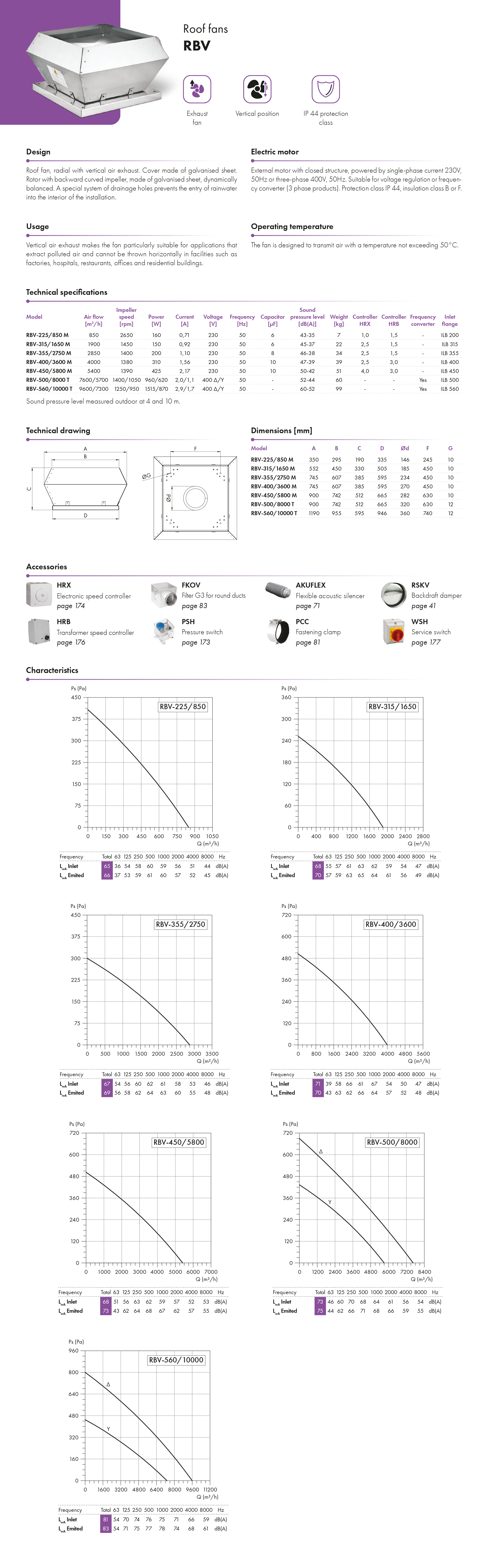

- Catalogue card
- Downloads
Product name
Capacity [m3/h]
Power [W]
Intensity [A]
Price
Availability
Product name
RBV-225/850 M
Capacity [m3/h]
850
Power [W]
160
Intensity [A]
0,71
Price
1.316,00
Availability
Product name
RBV-315/1650 M
Capacity [m3/h]
1900
Power [W]
150
Intensity [A]
0,92
Price
2.703,00
Availability
Product name
RBV-400/3600 M
Capacity [m3/h]
4000
Power [W]
310
Intensity [A]
1,56
Price
4.635,00
Availability
Product name
RBV-450/5800 M
Capacity [m3/h]
5400
Power [W]
425
Intensity [A]
2,17
Price
7.200,00
Availability
Product name
RBV-500/8000 T
Capacity [m3/h]
7600/5700
Power [W]
960/620
Intensity [A]
2,0/1,1
Price
8.551,00
Availability
Product name
RBV-560/10000 T
Capacity [m3/h]
9600/7300
Power [W]
1515/870
Intensity [A]
2,9/1,7
Price
11.893,00
Availability
Please write to us for special price
Do you have questions about this product?
Call us
+48 22 688 07 00Write an e-mail
info@ventia.plContact your sales representative
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
Design

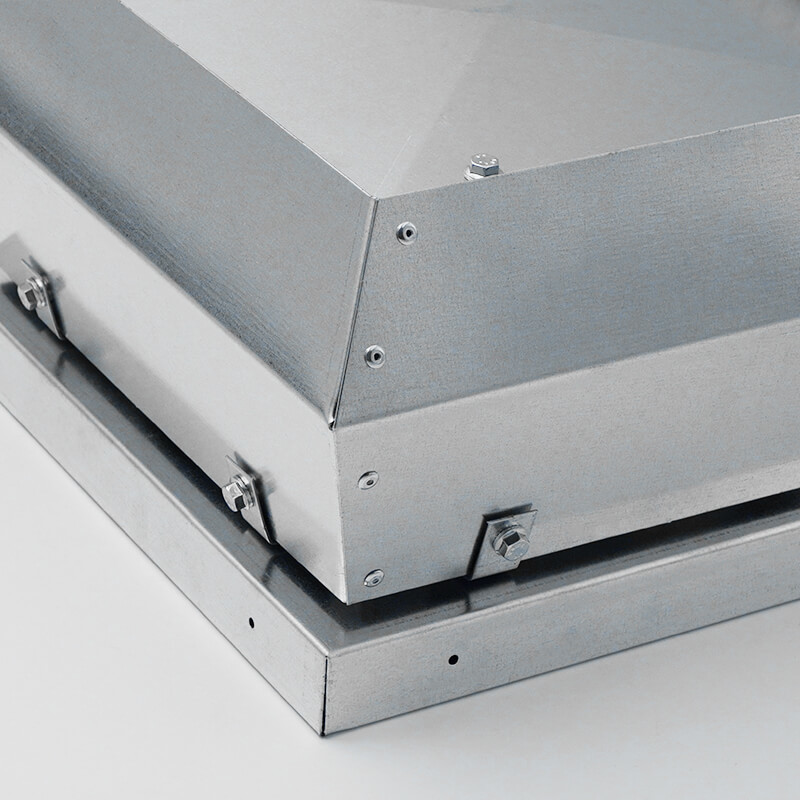

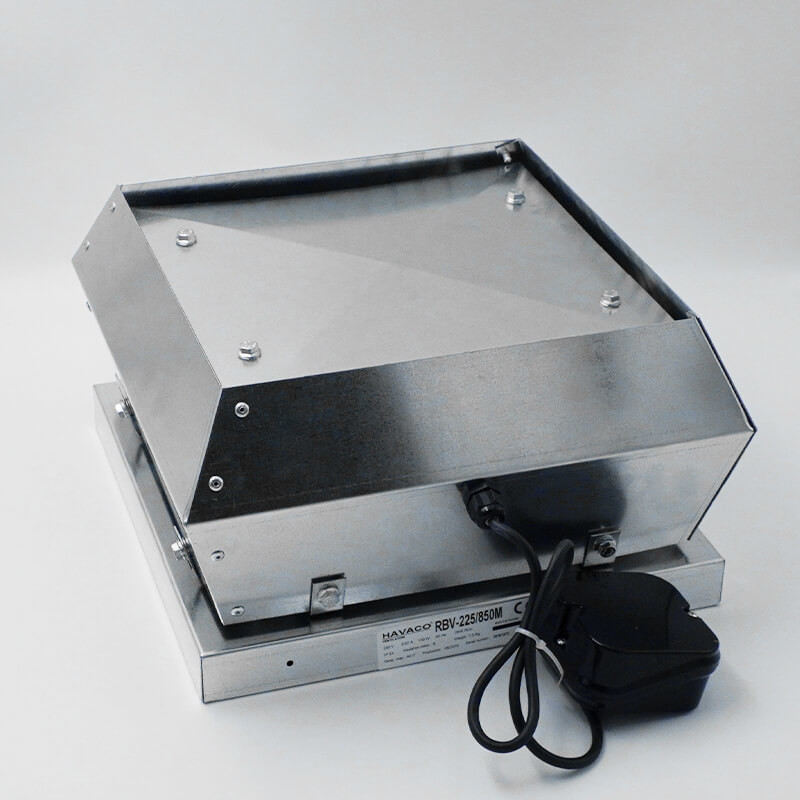

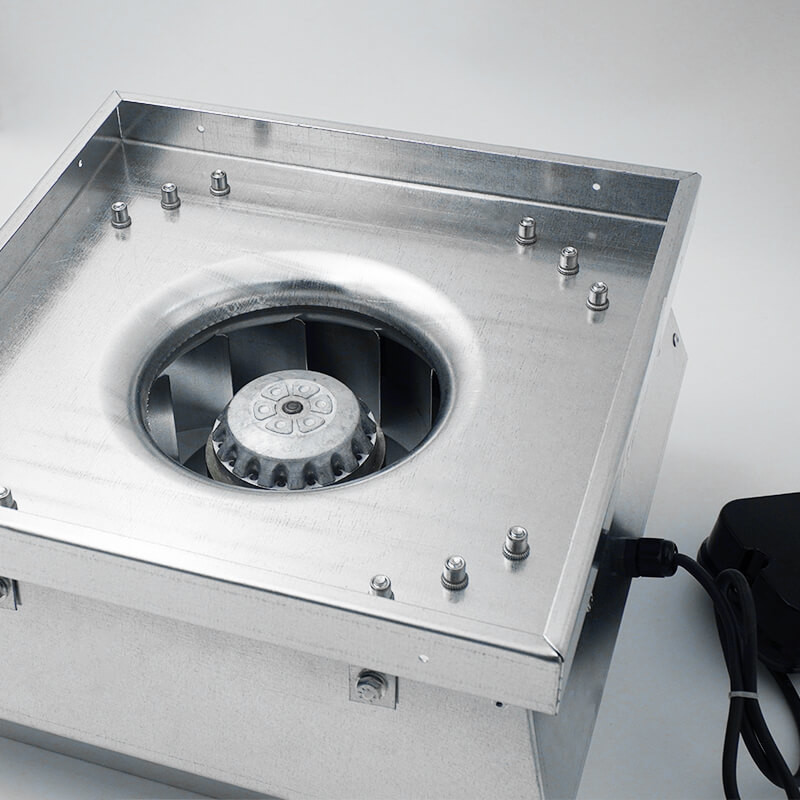

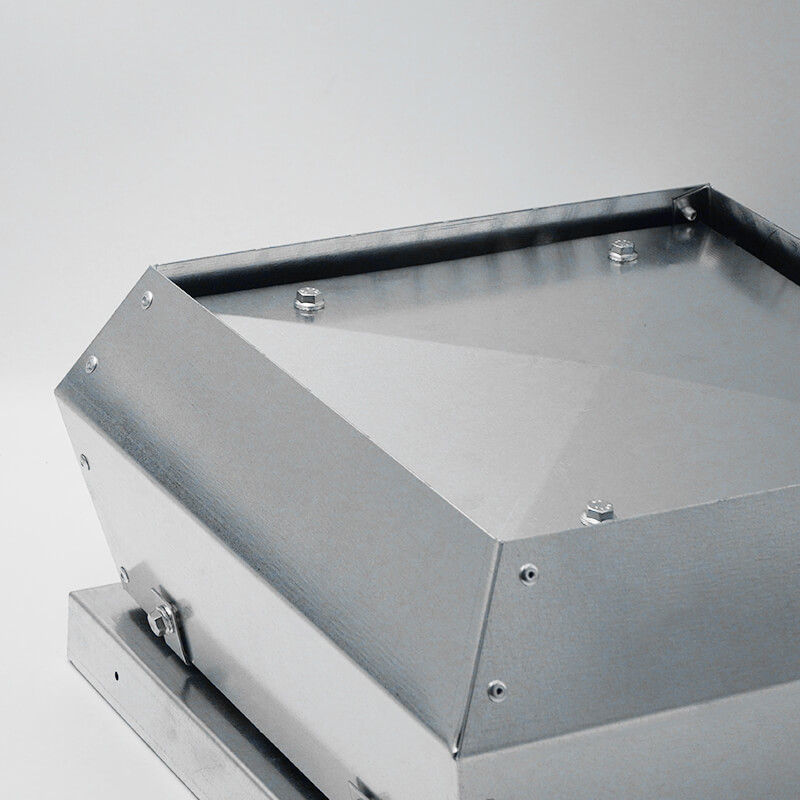

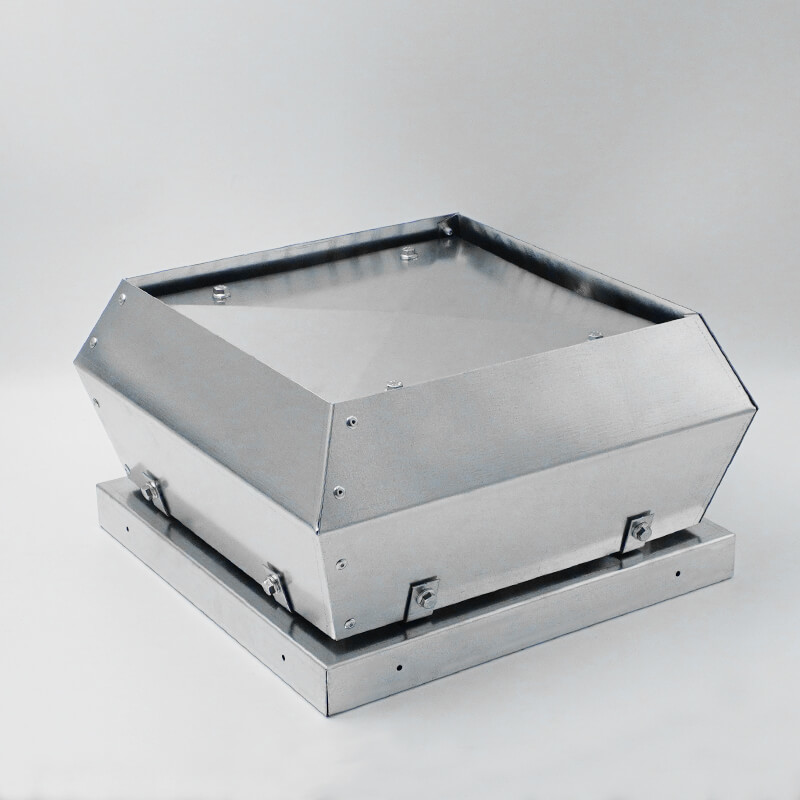

Roof fan, radial with vertical air exhaust. Cover made of galvanised sheet. Rotor with backward curved impeller, made of galvanised sheet, dynamically balanced. A special system of drainage holes prevents the entry of rainwater into the interior of the installation.
Electric motor
External motor with closed structure, powered by single-phase current 230V, 50Hz or three-phase 400V, 50Hz. Suitable for voltage regulation or frequency converter (3 phase products). Protection class IP 44, insulation class B or F.
Usage
Vertical air exhaust makes the fan particularly suitable for applications that extract polluted air and cannot be thrown horizontally in facilities such as factories, hospitals, restaurants, offices and residential buildings.
Operating temperature
The fan is designed to transmit air with a temperature not exceeding 50°C.
