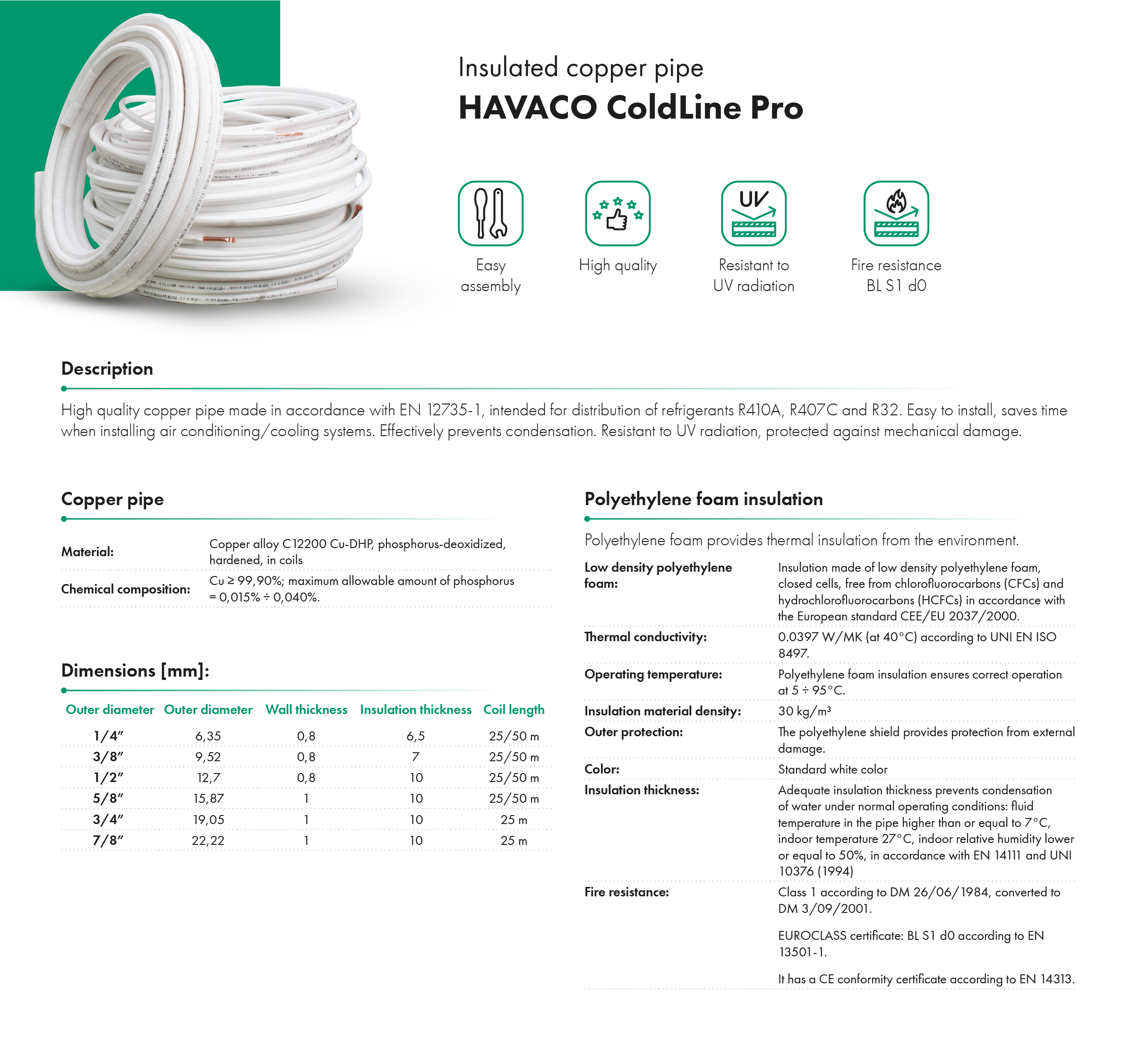

Insulated copper pipe HAVACO ColdLine Pro
High-quality copper pipe in accordance with EN 12735-1.
Made of C12200 Cu-DHP copper alloy, phosphorus deoxidized, hardened, in disks. Chemical composition: Cu≥99.90%; maximum allowable amount of phosphorus = 0.015% ÷ 0.040%.
- Variants & availability
- Description
- Catalogue card
- Downloads
Product name
Wall thickness
Coil length
Price
Availability
Product name
1/4" / 6,35mm
Wall thickness
0,8
Coil length
25
Price
452,00
Availability
Product name
3/8" / 9,52mm
Wall thickness
0,8
Coil length
25
Price
701,00
Availability
Product name
1/2" / 12,70mm
Wall thickness
0,8
Coil length
25
Price
899,00
Availability
Product name
5/8" / 15,87mm
Wall thickness
1,0
Coil length
25
Price
1.415,00
Availability
Product name
3/4" / 19,05mm
Wall thickness
1,0
Coil length
25
Price
1.822,00
Availability
Product name
7/8" / 22,22mm
Wall thickness
1,0
Coil length
25
Price
2.205,00
Availability
Please write to us for special price
Do you have questions about this product?
Call us
+48 22 688 07 00Write an e-mail
info@ventia.plContact your sales representative
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
POLYETHYLENE FOAM INSULATION - Polyethylene foam provides thermal insulation from the environment.
- Low-density polyethylene foam: closed cells, free of chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs) in accordance with European standard CEE/EU 2037/2000.
- Thermal conductivity: 0.038 W/mK (at 40°C) according to UNI EN ISO 8497.
- Resistance to water vapor diffusion: u=6100 in accordance with UNI EN 13469.
- Operating temperature: polyethylene foam insulation ensures proper operation at -80 ÷ 98°C.
- Density of insulation material: 30kg/m3
- External protection: polyethylene cover provides protection from external damage
- Color: white color as standard
- Insulation thickness: adequateinsulation thickness prevents condensation under normal operating conditions: fluid temperature in the pipe higher or equal to 7°C, indoor temperature 27°C, indoor relative humidity lower or equal to 50%, according to EN 14111 and UNI 10376 (1994)
- Fire resistance:
- Class 1, according to DM 26/06/1984, converted to DM 3/09/2001
- EUROCLASS certification:BL S1 D0 in accordance with the EN 13501-1 standard
- CE certified in accordance with EN 14313
